Five wire stator harness setup

Check out the Roadstercycle home page.

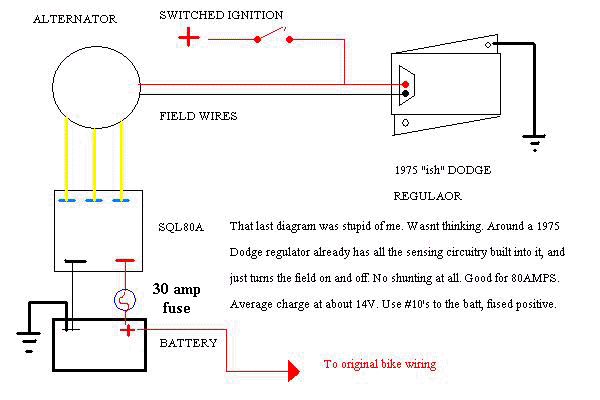

Here is a diagram from a pretty sharp motorcycle fellow who saw my request for help on the
5 wire stator harness problem . This is his take on it and it makes sense. It takes a few more
dollars to try it but I think it's worth it for some of you. I found a Dodge "78" regulator and connector
for it on Amazon. Make sure you buy a 12volt regulator. The 3 phase SQL50A rectifier I found
on Ebay.  It is pretty self explanatory.  If there is anyone out there who is a bike mechanic or very
experienced home motorcycle mechanic and has a 5 wire stator setup and wants to try this email
me. Or if you live and have a bike around  the Los Angeles, Ca. area and want to try it. Also email
me. I'll do the work. The 80 amp SQL80A is a bit over kill so we'll use the 50 amp. I have found
other 3 phase rectifiers with screw terminals also but until we get some sort of confirmation on this
working we should go inexpensive. I am still looking for a bike to try this on but no luck. So if your
so if you have one let me know. Update 6/2/2011, I put this system on my SX650 Yamaha Street Tracker.
Works great!!!!!!!! No issues.

Jack

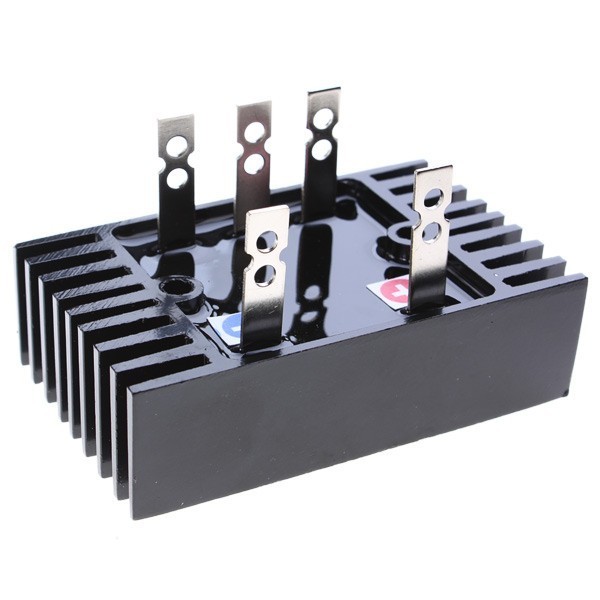

SQL50A 3 phase rectifier Changes AC to DC.

75 Dodge electronic voltage regulator.
