SHORAI and STANDARD battery LED monitors!!!

$22.95    DON'T GET STRANDED BY A FAULTY CHARGING SYSTEM, START WATCHING IT NOW!



Choose battery type, stock or Shorai

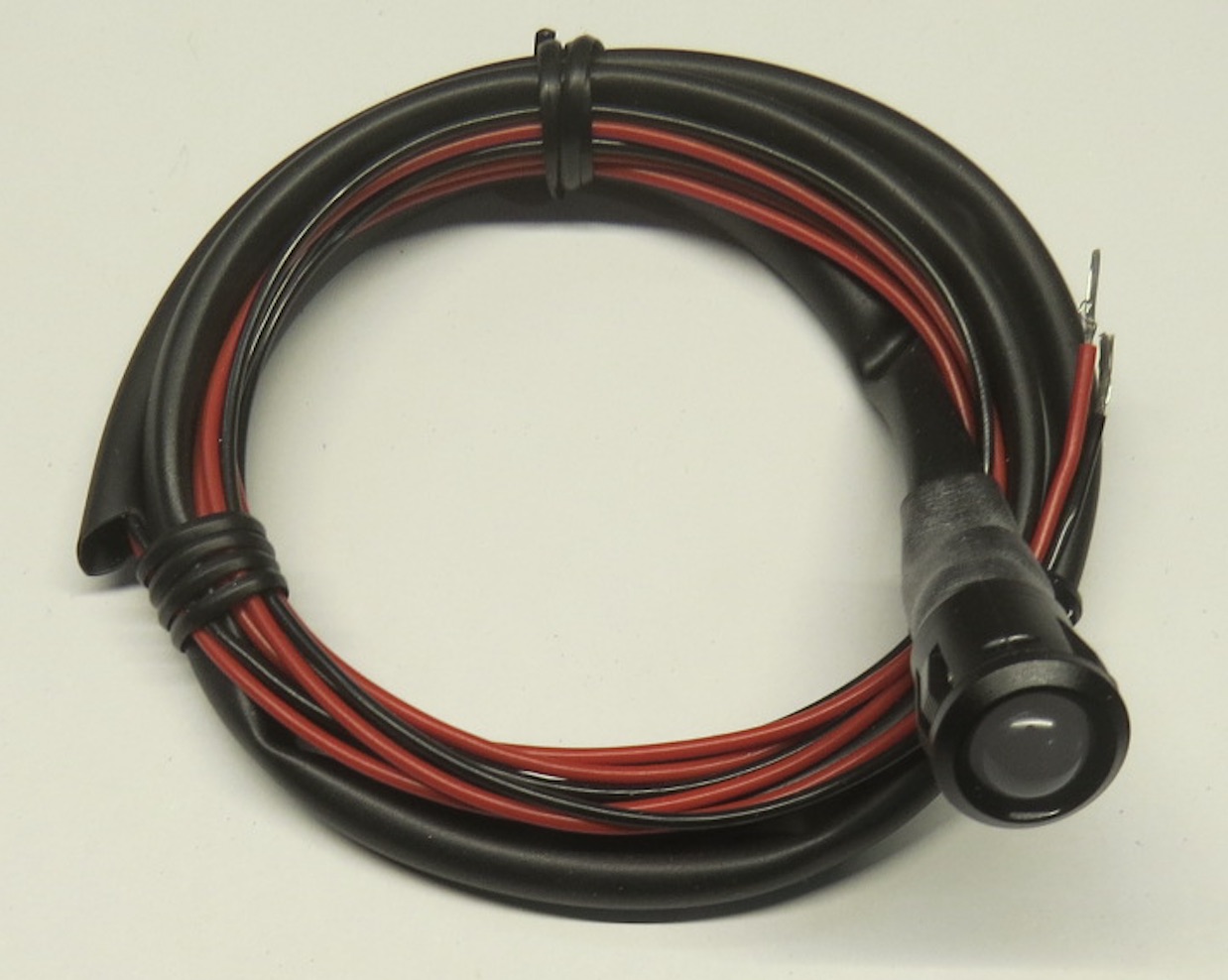

NEW!!!!.... LED Charging system and voltage Monitor. Stock type batteries or the new Shorai. Using a microprocessor and surface mount technology this is the Ferrari of LED monitors not the cheap ones using old technology sold on Ebay.. No drilling required, easy 2 wire hookup. Mount on your instrument cluster, triple tree, clutch or brake master cylinder just about anywhere you choose using the double sided foam tape and black custom case. The foam tape contours nicely to most surfaces. I've tried all the battery  monitoring systems I could find before I decided on this one. Works great and easy to mount. Just attach the black wire to ground and the red wire to a running light or your ignition switch on circuit. I've been running this on my ZRX 1200 for a few months now and I love looking down and seeing the green light telling me my charging system is working fine. At first I thought the 10 mm LED it may be too bright at night but as far as I am concerned it has just the right brightness. I can also move it to another bike easily without leaving a drilled hole behind. It's dimensions are .750" x 1.00" x 1.00".
IT SHIPS FREE IF YOU ADD IT TO A  MOSFET KIT PURCHASE.

The warning indications are as follows:
Green, light charging fine, The window is about 13.2 to 14.8 volts.
Green and red alternating is over voltage (over 15.2 for a standard battery monitor and 15.0 volts for a Shorai battery monitor, not good)
Amber, (bike running) hook up a voltmeter on your bike and see what's happening with it running.
Red or red flashing means your bike is probably not running and you have your lights on, or if your bike is running there is trouble in paradise and you need to take action not to get stranded.

Jack
